Features and benefits:
-Replacement of 24v lead acid battery to a 24v lithium battery
-Upgrade your 24v garage door backup battery to a long lifespan 24v lithium
-Capacity upgrade of garage door backup battery from typically 3.5Ah to 12Ah
- Ideal for use in:
* Garage motor backup batteries
- Ultra safe lithium iron phoshate (LiFePO4) cells
- Integrated battery management system (BMS)
- Light weight and compact
- Water and dust resistant (IP55)
- Highly durable sealed ABS plastic enclosure
- Drop-in 24v lead acid replacement
- Sealed and non-liquid (No fumes, no leaking, mount in any position)
-Battery type Lithium Iron Phosphate (LifePO4)
-Usable Capacity 307.2 Wh
-Nominal Voltage 25.6 VDC
-Nominal Capacity 12Ah @ 0.2C
-Operating Voltage Range 24v – 28.8 VDC
-Weight (kg) 2.8kg
-Warranty Period 1 Year
-Bulk Charging Voltage 28.8 VDC
-Float Charging Voltage 27.6 VDC
-Maximum Current 20A
-Discharge Voltage Minimum 24 VDC
-Self-discharge Rate < 3.5% per month
-Cycle Life 2000 – 8000 depending on % DoD
-Over-voltage Cut-out 29.2 VDC
-Under-voltage Cut-out 20 VDC
-Continuous Charging Current Max 20A
-Continuous Discharging Current Max 20A

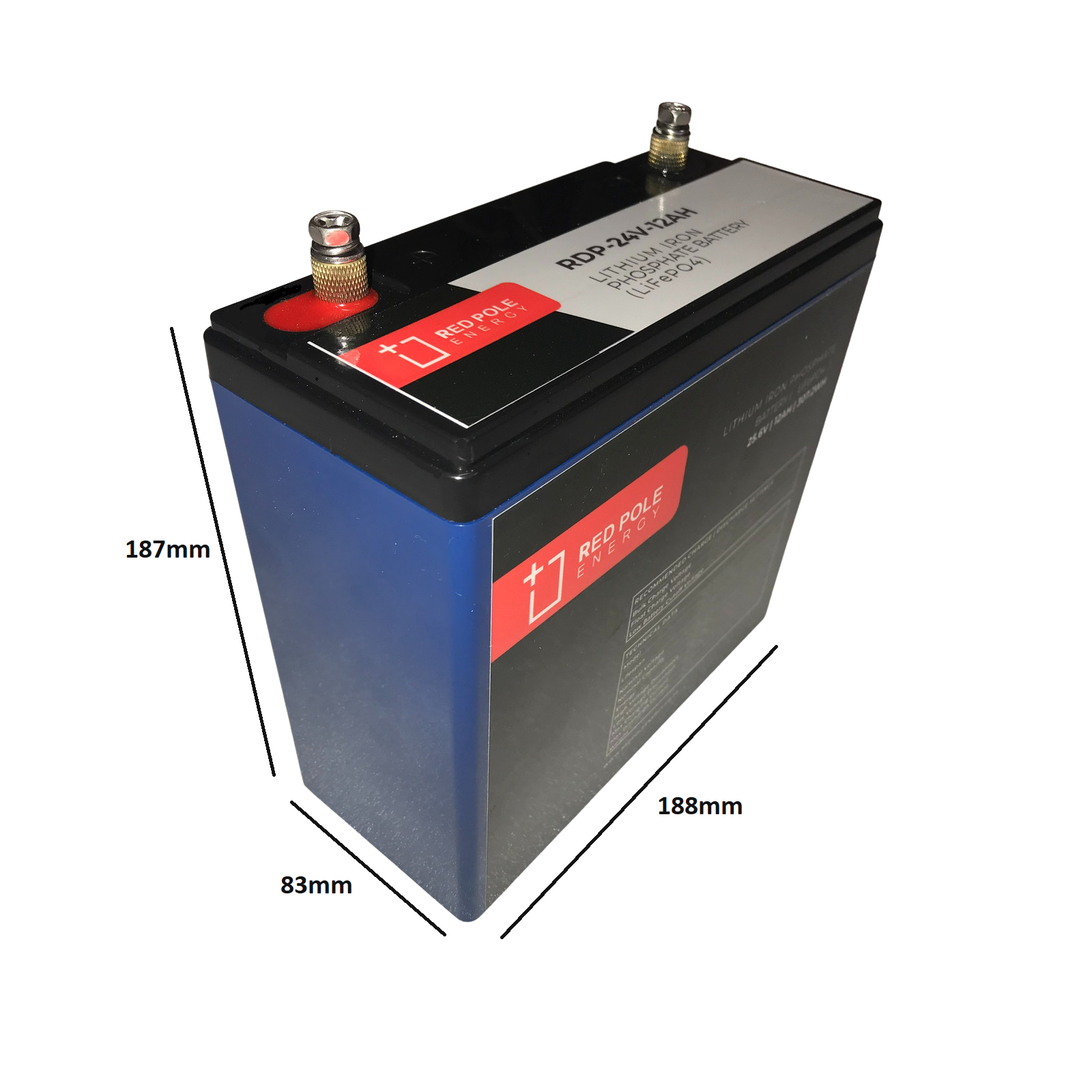

-Dimensions (mm) 188 x 83 x 187mm (L x W x H)
-Lifespan 100%DoD > 2000 cycles, 80%DoD > 3000 cycles, 50%DoD >5000 cycles (0.2C charging or discharging, 25ºC)
-Protection Over-voltage | Under-voltage | Short circuit | Dust and water resistant
-Operating Temp Range Charge: 0°C to 45°C | Discharge: -20°C to 60°C
1 x 24V 12Ah / Garage Door / Lithium Battery
2 x Copper Battery Lugs
