Increased life span (10 x longer than lead acid). Load shedding does not destroy these batteries and you can expect a 5+ year life span from them.
Direct replacement for 12V 7Ah Lead Acid. This battery is exactly the same size and dimensions as standard gate and alarm batteries. Compatible with existing chargers and machines.
Ideal for use in:
Gate motors backup battery like ET Nice and Centurion
Home and business Alarm system battery backup
Access Control Gates backup battery
Electric Fences backup battery
CCTV backup battery
This is a very reliable lithium gate battery. 12v 7Ah sealed lead-acid (SLA) batteries are typically installed in small electronics that require backup power, like alarm systems and gate motors, but they are not ideal for regularly handling high current, and being discharged often or discharged too low. Thus when they are frequently drained (like during load shedding), they are easily damaged, and you will find that you need to replace them quite often.
This lithium iron phosphate battery on the other hand has a high cycle rate (2000 cycles, versus 200 to 400 cycles of an SLA battery), it can handle higher current, and the internal battery management system protects the battery from overcharging or discharging too low.
That simply means this lithium battery replacement should last 10 times longer than the typical SLA battery it is replacing.
Other advantages are that there are no fumes, the self-discharge rate is less than 3.5% per month (SLA will drain itself dead in 12 months), the batteries weight 700g vs the 2kg average weight of a 12v 7Ah SLA battery, and they can be charged and discharged faster (at higher current).
This battery can directly replace a sealed lead acid 12v 7Ah battery (same size, same charging voltages) and is an upgrade in terms of how many cycles the battery can do (how many time can be used before needs replacing).
Please note that while this is technically a 12v 6Ah battery, it performs like a 12v 7Ah lead acid battery in most applications since it is able to consistently deliver its full available capacity, whereas the lead acid 12v 7Ah battery will degrade rapidly in capacity as it ages, or when under high load.
TIP : To calculate how long this battery can last in your application, lookup the load power of the device it will be powering in Watts, then divide 75W with that number. Example, a 12v alarm system drawing 1A load, has a 12W (12v x 1A = 12W) load, so it can run from this battery for 6hrs 15min (75 / 12 = 6.25).
NOTE : If you require extra capacity and want to upgrade to a long life lithium battery, then also see our 12V 12Ah Alarm / Gate Lithium Battery (12V 7Ah High Capacity Upgrade) product listing.
UPS NOTE : Only use this battery inside a UPS if the UPS low voltage disconnect can be set to 12v, or if you are sure the UPS will last longer than loadshedding. Otherwise if the UPS is run until it stops working (battery voltage too low and BMS low voltage protection triggered) then the UPS will not turn on when the power comes on. The battery BMS needs a charge to wake up and UPS won't turn on and charge it without battery being detected.
- Ultra safe lithium iron phosphate (LifePO4) cells - Integrated battery management system (BMS) - Light weight and compact - Water and dust resistant (IP55) - Highly durable sealed plastic enclosure - Drop-in lead acid replacement (gate motors, alarm systems, small electronics) - Sealed and non-liquid (No fumes, no leaking, mount in any position)

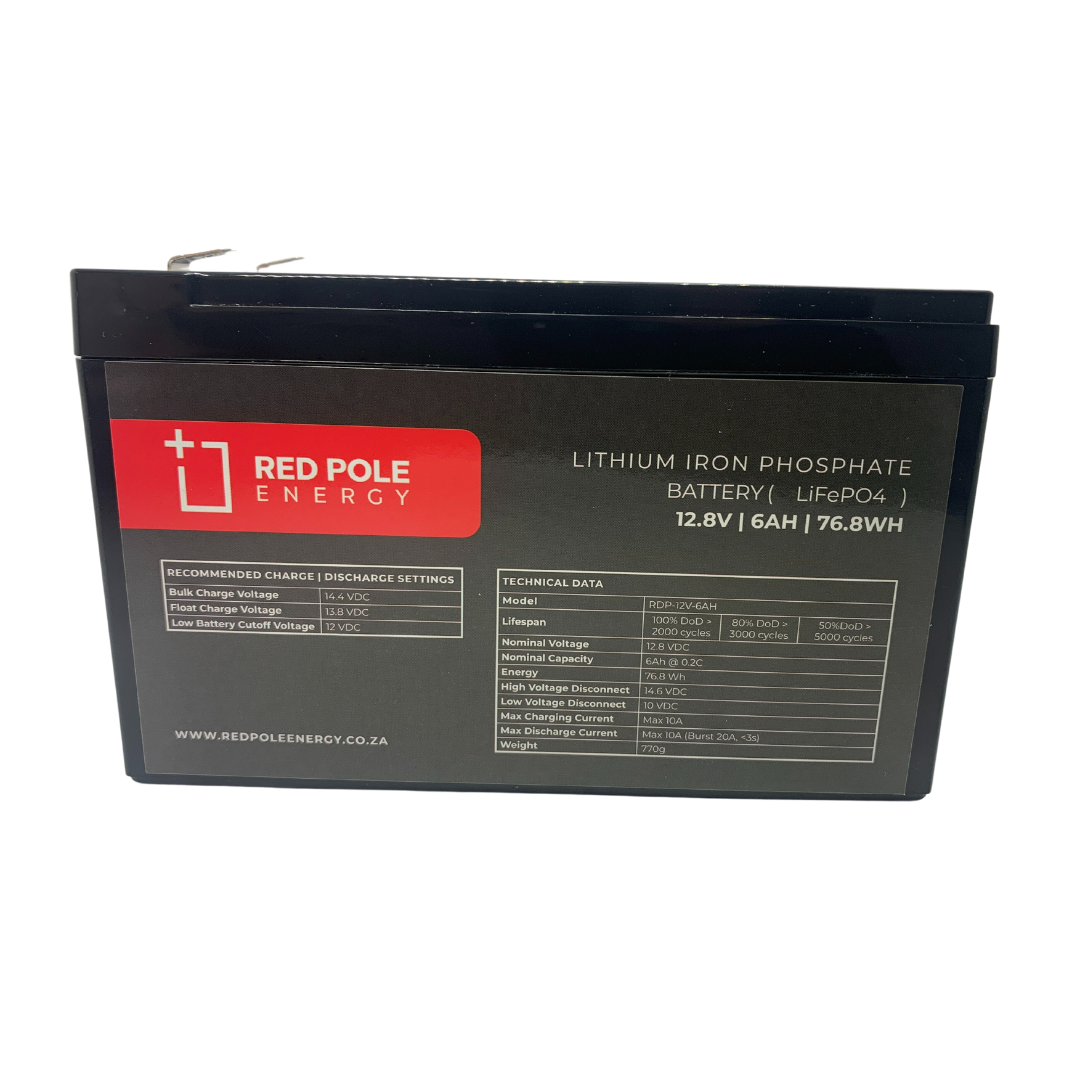

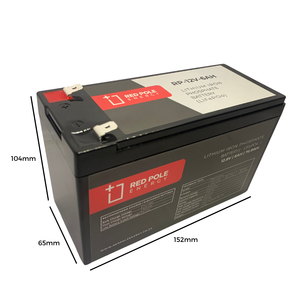

- Lithium Iron Phosphate (LifePO4) Battery Type - 75 Wh Usable capacity - 6Ah Nominal capacity @ 0.2C - 12.8 VDC Nominal Voltage - Operating Voltage Range : 11.6 VDC to 14.4VDC - Operating Temp Range : Charge: 0°C to 45°C | Discharge: -20°C to 60°C - Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant - Lifespan : 2000 cycles @ 0.2C charging, or discharging until 70% capacity - Dimensions : 152 x 65 x 97 mm (W x D x H)(H=104mm including terminals) - Terminal : F2 (Note - F2 to F1 adapter supplied) - Weight : 770g
Charging / Discharging : - Bulk Charging Voltage : 14.4 VDC - Float Charging Voltage : 13.8 VDC - Charge Current : Max 6A - Discharge Current : Max 6A (Burst 12A, <3s) - Discharge Voltage Cut-out : 10 VDC - Over-voltage Cut-out : 14.6 VDC - Discharge Current : 0.6A for 10hrs | 1.2A for 5hrs | 6A for 1hr | Max 12A burst - Self-discharge rate : < 3.5% per month
1 x 12v 75Wh Lithium Battery 2 x F2 to F1 connector adapter 2 x F2 terminal with 15cm wire
How long does it take to charge considering the frequency of load shedding? Can it be powered directly from the alarm PSU?
Yes it can be run directly from your alarm system. The battery can charge from 0% - 100% in one hour. However, the speed of charge is dependant on the specification of the charger. Generally, chargers either charge at 1A, meaning 6 hours charge time, or 5A, meaning 1.15 hours of charging.
