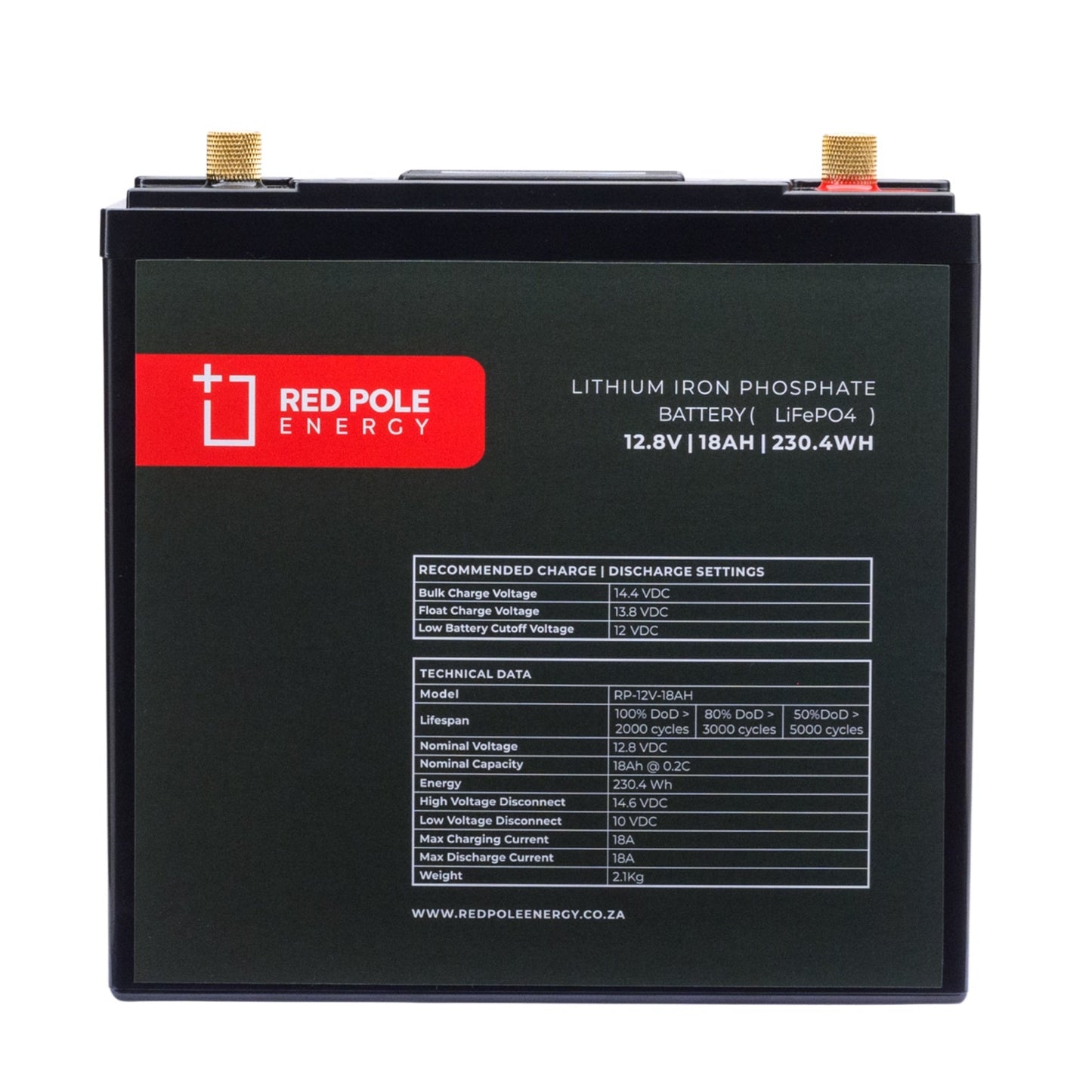

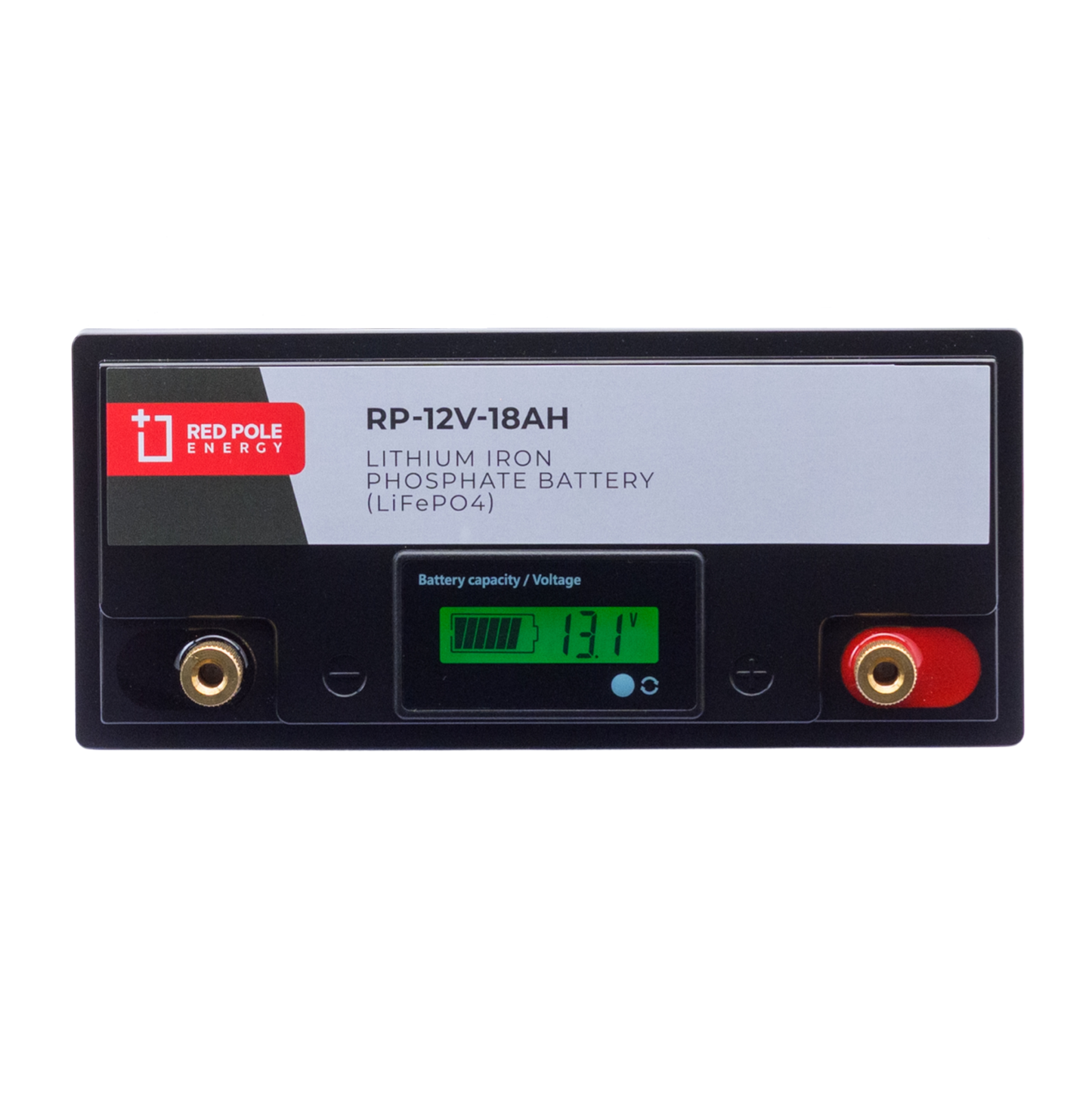

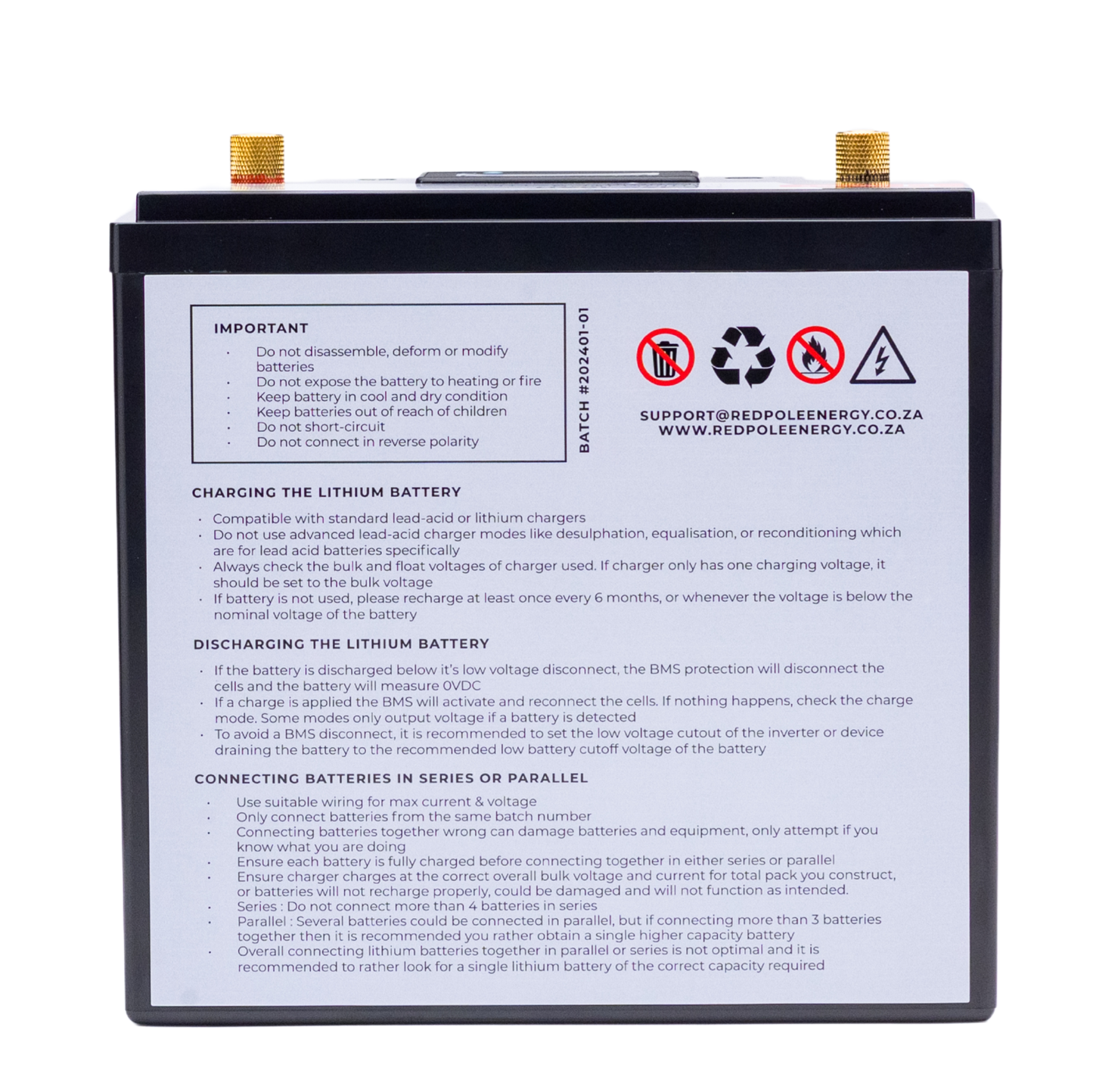

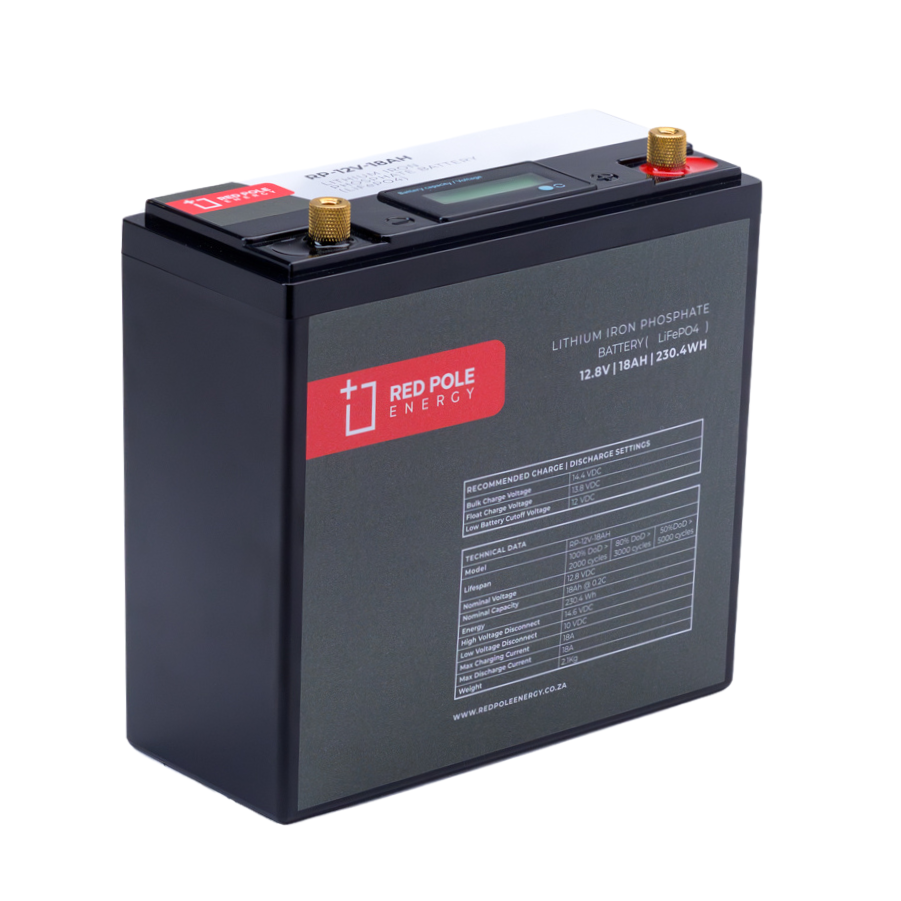

12V 18Ah 230Wh Lithium Battery
12V 18Ah 230Wh Lithium Battery
12V 18Ah 230Wh Lithium Battery
12V 18Ah 230Wh Lithium Battery

12V 18Ah 230Wh Lithium Battery

Regular price R 2,099 Sale

-Increased life span (10 x longer than lead acid).
-Loadshedding does not destroy these batteries and you can expect a 5+ year life span from them.
- Direct replacement for 12V 18Ah Lead Acid. Same size, same charging voltages.
- Three time more energy storage capacity than a 12v6Ah battery.
- High current, up to 18A continuous charge / discharge current, burst up to 24A.
- High cycle life of 2000 to 8000 cycles depending on DOD.
- No fumes and can be mounted in any position.
- The self-discharge rate is less than 3.5% per month (SLA will drain itself dead in 12     months).
- Light weight, the batteries weigh much less than your average lead acid batteries.

- Ultra safe lithium iron phosphate (LifePO4) cells
- Integrated battery management system (BMS)
- Light weight and compact
- Water and dust resistant (IP55)
- Highly durable sealed plastic enclosure
- Drop-in lead acid replacement for alarm systems
- Sealed and non-liquid (No fumes, no leaking, mount in any position

- Lithium Iron Phosphate (LifePO4) Battery Type
- 230.4 Wh Usable capacity
- 18Ah Nominal capacity @ 0.2C
- 12.8 VDC Nominal Voltage
- Operating Voltage Range: 11.6 VDC to 14.4VDC
- Operating Temp Range: Charge: 0°C to 45°C | Discharge: -20°C to 60°C
- Protection: Over-voltage | Under-voltage | Short circuit | Dust and water resistant
- Lifespan: 2000 cycles @ 0.2C charging, or discharging until 70% capacity

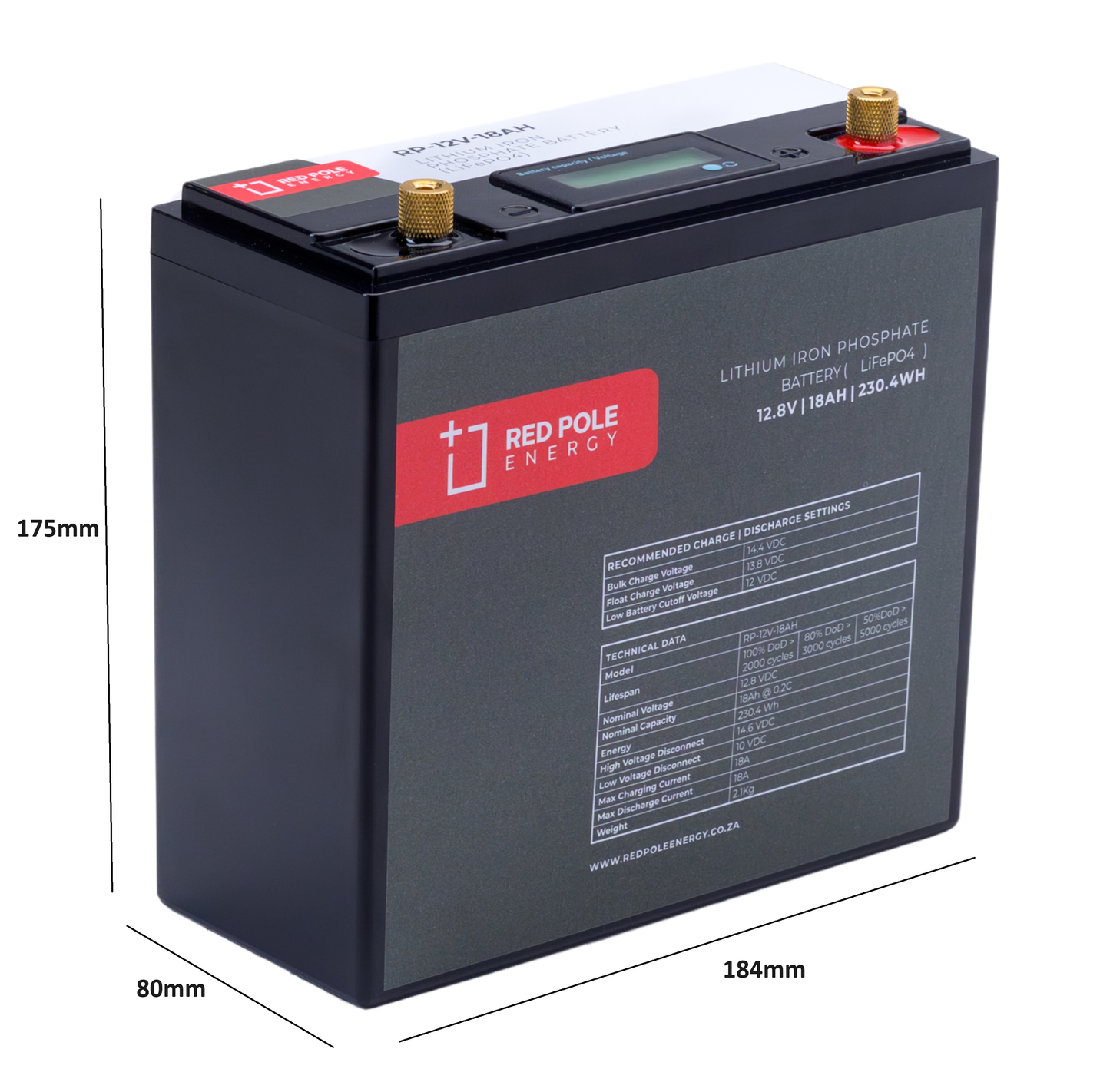

- Dimensions: 175mm x 80mm x 185mm
- Terminal: M5
- Weight: 2100g

Charging / Discharging:

- Bulk Charging Voltage: 14.4 VDC
- Float Charging Voltage: 13.8 VDC
- Charge Current: Max 18A
- Discharge Current: Max 18A (Burst 24A,<3s)
- Discharge Voltage Cut-out: 10 VDC
- Over-voltage Cut-out: 14.6 VDC
- Discharge Current: 1A for 18hrs | 2A for 9hrs | 18A for 1hr | Max 24A burst
- Self-discharge rate: < 3.5% per month
1 x 12v 18Ah 230Wh Lithium Battery
