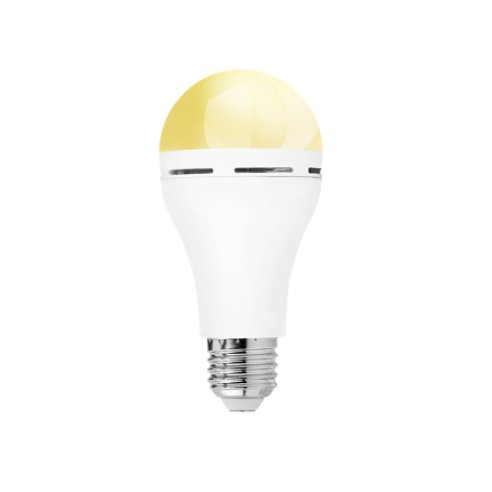

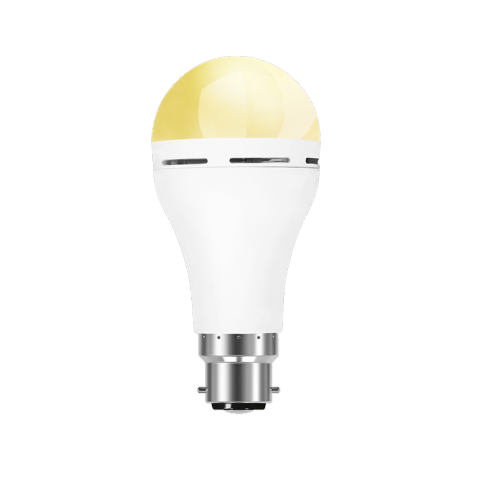

The Emergency LED bulb stays on in the event of a power outage or load shedding. The emergency bulb is a direct replacement for any standard bulb. It has a built-in battery that will automatically charge when the bulb is switched on. In the event of a power outage, the built in intelligent light control automatically reduces the brightness of the bulb to 140lm to ensure that the battery lasts as long as possible, and gives you 3 hours of backup light that will last you through load shedding.
How does the lamp know the difference between light switch activation and load shedding? - The internal emergency management IC will detect the voltage of L and N - When the voltage of a single line is cut off (light switch activation), there are still neutral voltages so the lamp will not go into emergency mode.
What is the effect of the lamp switching if there is no other load on the switched circuit? - The emergency lamp will activate in emergency mode only when the IC cannot detect any voltage in the input cable (power outage), and when a loop is present in the external circuit. The loop is created by other components on the same electrical circuit within the installation. - In this scenario, the resistance between L and N is very small and the IC can detect this
What conditions make the bulb work during a load shedding? - When the IC cannot detect any voltage from the input cable (power outage) - When a loop is present in the external circuitry. This loop is created by other components on the same electrical circuit within the installation. In this scenario, the resistance between L and N is very small and the IC can detect this.
• Stays on during a power outage or load shedding • 3 hour power storage built into existing A60 lamp profile • High 810 lumen during normal operation • First hour after power failure = 140lm during first hour after power failure • Next 2-3 hours lumens = 100lm during 2-3rd hour after power failure • Available in both E27 and B22 base caps • 150° Beam angle • 1.5kV Surge protection protects against power surges from within the electrical circuit including surges from Eskom • 2 Year Warranty
