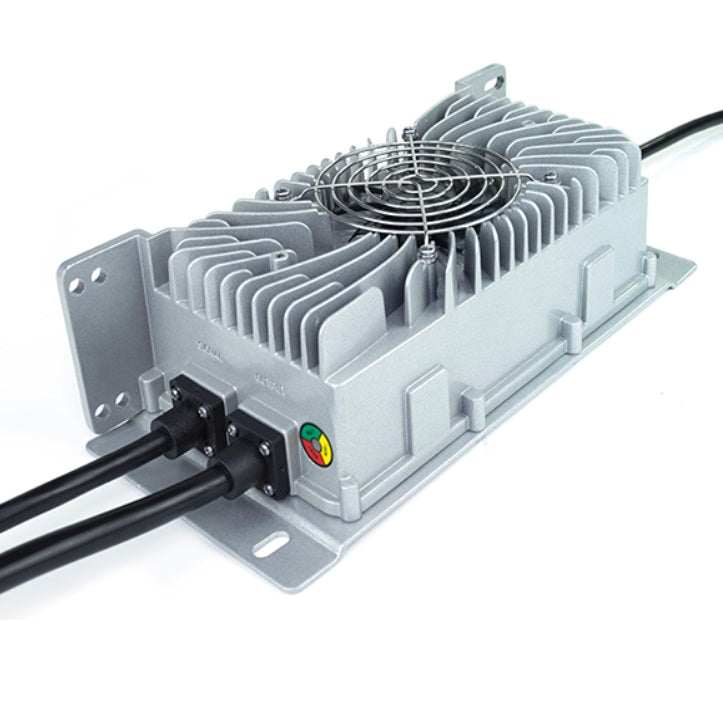

Our industrial battery charger is designed to last in even the most rugged and harsh operating environments.
Built to withstand shock and vibration, with a robust waterproof aluminium body, the charger is durable and built for reliability.
The charger can output up to 20A output, delivering a powerful and fast charging experience.
The unit cools itself with a IP68 rated fan, that turns on automatically as needed to cool the aluminium body.
This unit is an onboard charger, which means it is a charger that gets built into the vehicle or equipment and can also be incorporated into the dashboard and control systems.
The charger comes with an external charge status indicator on a 1.5m cable that can be installed into the dashboard for easy reference regarding the battery's charge status.
The charger also comes with an interlock system, which is a safety system or locking system that prevents you from starting the vehicle / equipment as long as it is charging.
The charger is optimally adjusted for our Red Pole Energy range of Lithium batteries, but is also compatible with a wide range of batteries, simply check the charging specifications of the battery you want to charge.
- Suitable for installation on vehicles
- Interlock safety system
- External charge status indicator (1.5m cable)
- Wide AC input voltage range (not sensitive to variations)
- Completely automatic battery charging: CC, CV and Floating
- Charger status LED :
Red Flash (error)
Red (charging)
Yellow (almost full)
Green (full)
- Charger waterproof rating: IP65 and Fan IP68
- Rugged aluminium body with integrated heatsink
- Input Connector: SA 3 point plug (2m cable)
- Output Connector: Red Anderson (50A)
- Input Voltage: 90 - 264 VAC
- Input Frequency: 50 Hz
- Input Current: < 4A
- Input Power Factor(Typ.) : ≥0.98 (Tested when the power is above half power)
- Efficiency: 93%
- No Load Power Consumption: <2W
- 3 Phase Charging: Pre-Charge, Constant Current, Constant Voltage
- Constant Voltage: 27.6 VDC (LiFePO4, 8s, Float Voltage)
- Output Connector: Red Anderson (50A)
- Output Power: 560 W Max
- Output Voltage: 27.6 VDC Max
- Output Current: 20 A Max
- Output Current Ripple: 500mAp-p Max
- Charger Waterproof Rating: IP65
- Fan Waterproof Rating: IP68
- Enclosure Material : Aluminium
- Dimensions: 158mm x 82mm x 289mm (WxHxL)
- Weight: 3.15kg
- Protection: Short Circuit, Over Voltage, Over-Temperature, Reverse Polarity
- Operating Temperature: -20 to 50 ºC
- Operating Humidity: Up to 100%
- MTBF: >100k hours
- Safety standards: EN60335, GB/T4706
- Withstand voltage: I/P-O/P: 2KVAC I/P-FG: 2KVAC O/P-FG: 2KVAC
- Isolation resistance: I/P-O/P, I/P-FG, O/P-FG: 100M ohms / 500VDC / 25ºC / 70%RH
- EMC emission: EN55022 Class A, GB/T 9254 Class A
- EMC immunity: EN 55024:2010, GB/T17618
- Vibration resistant: 10 ~ 500HZ, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes
