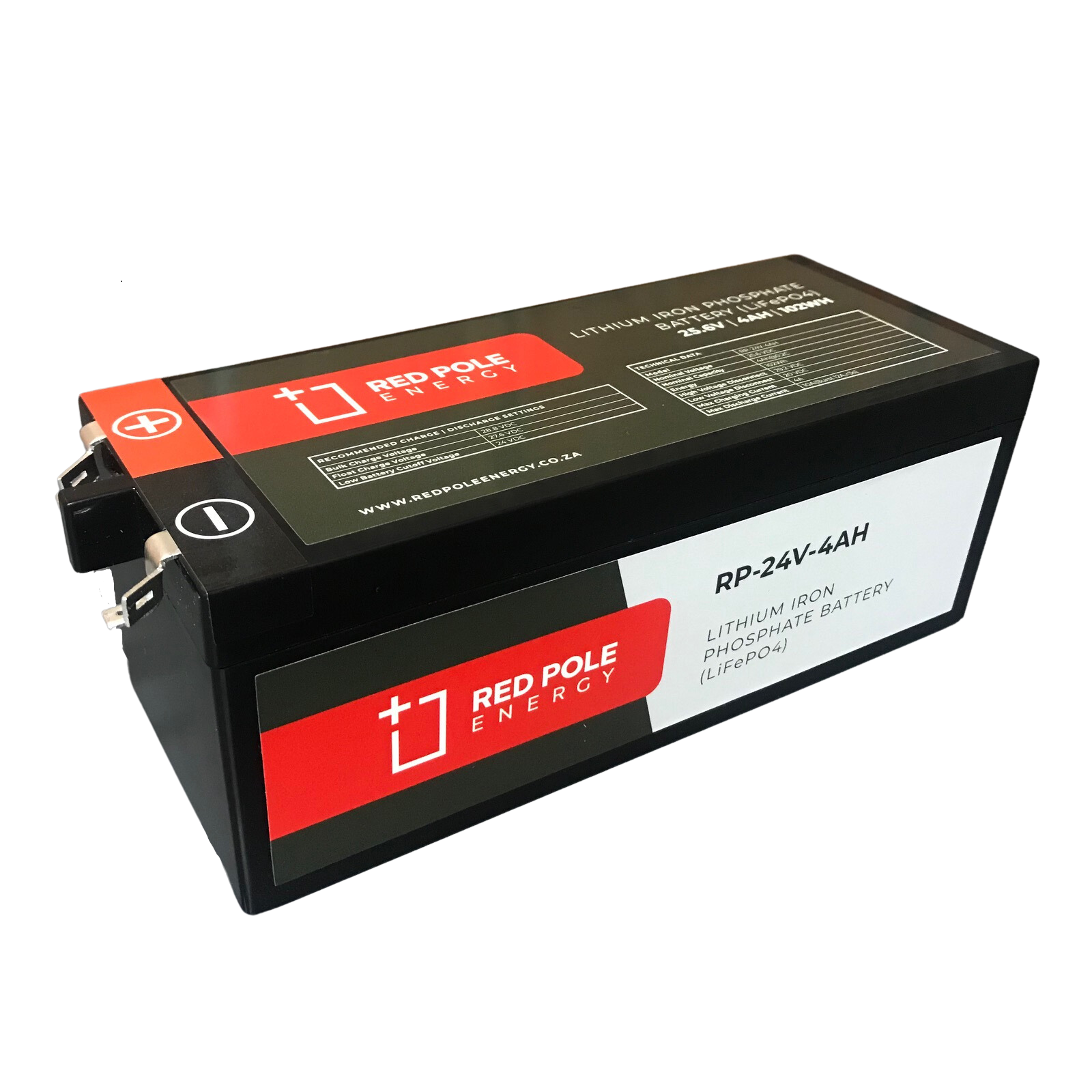

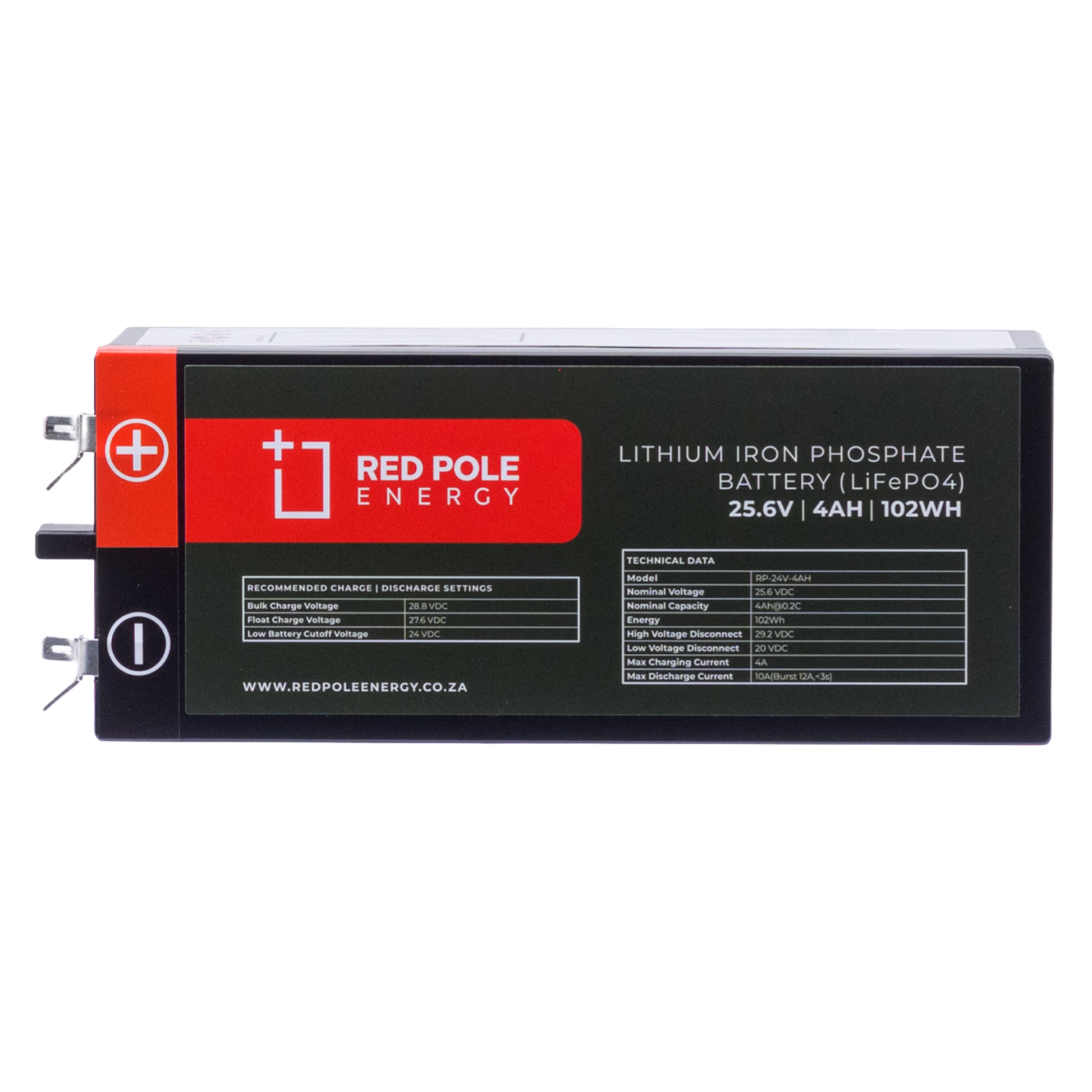

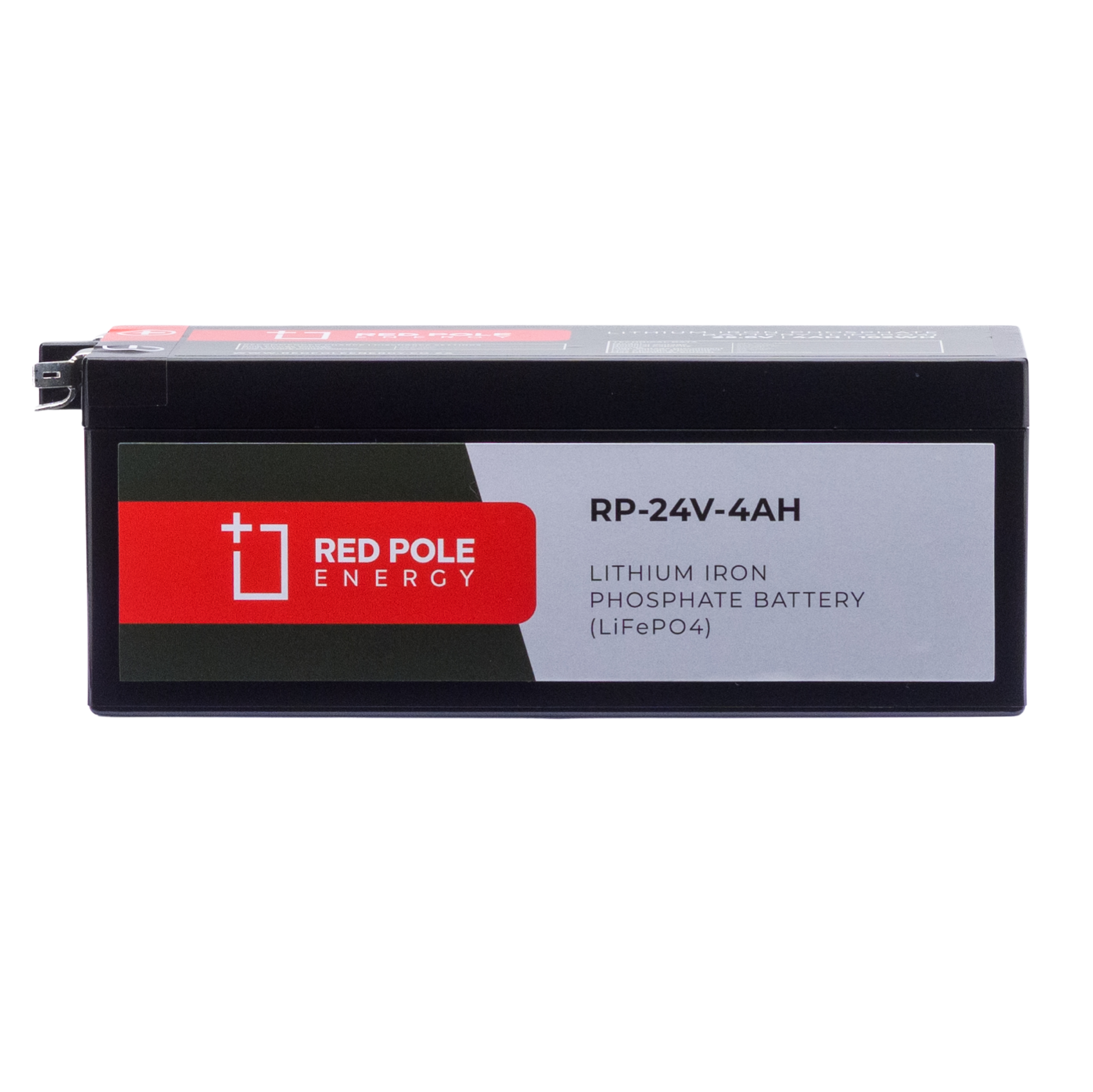

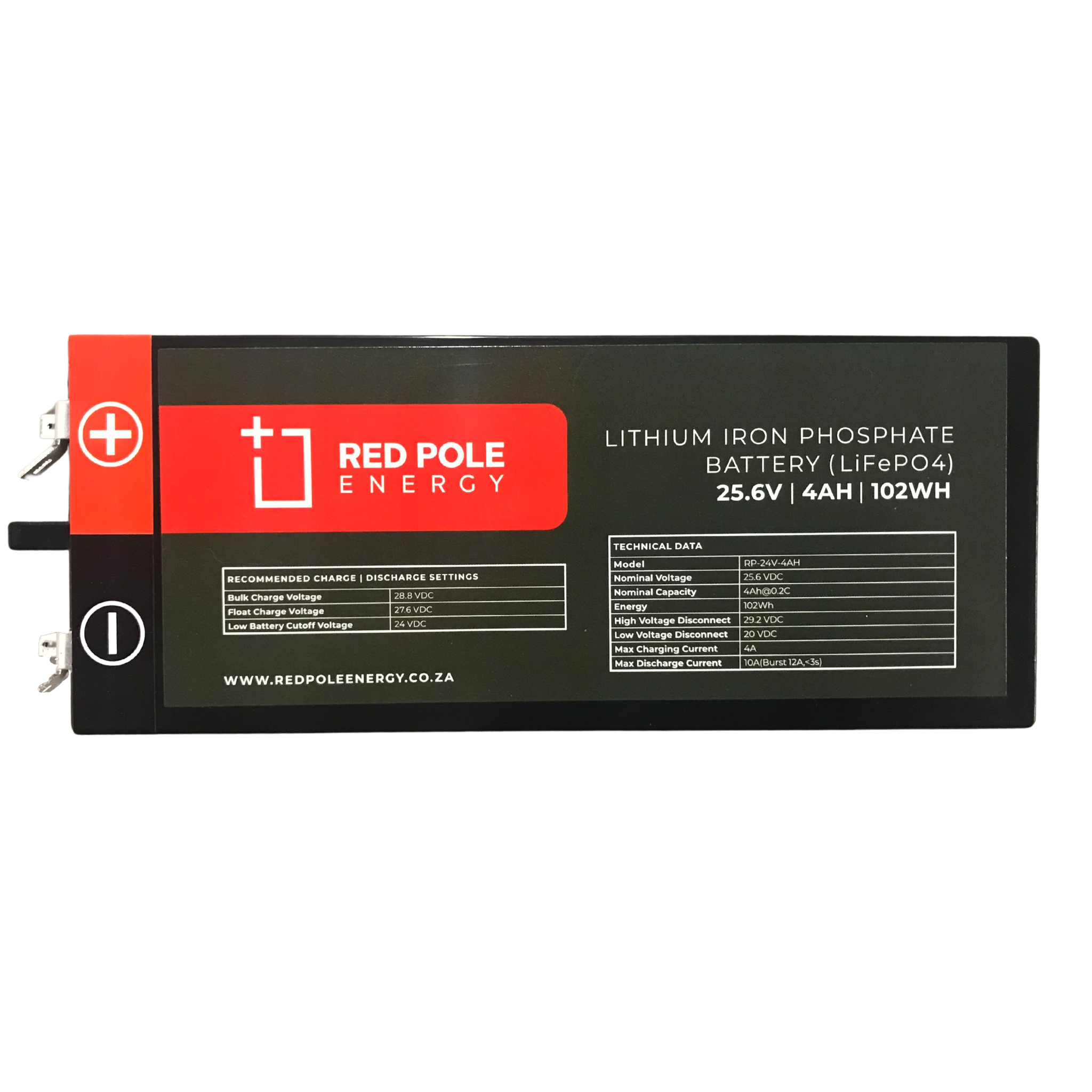

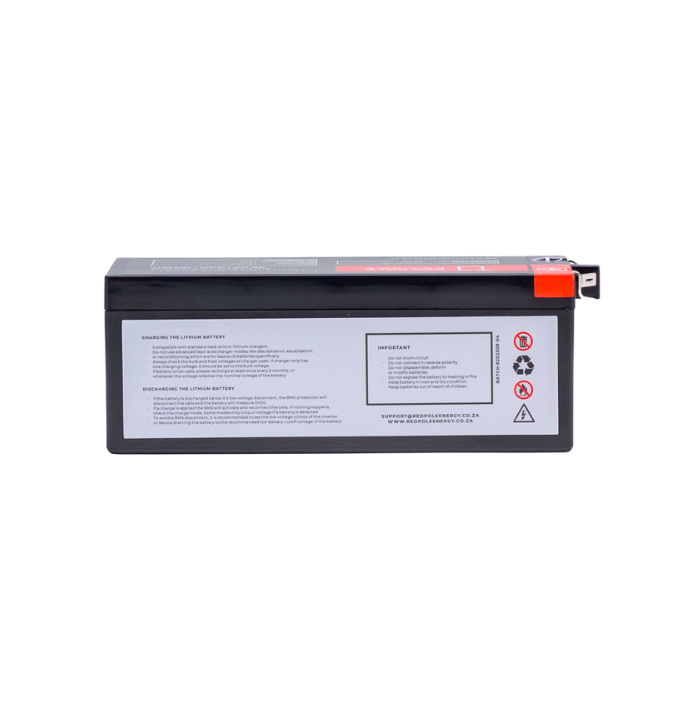

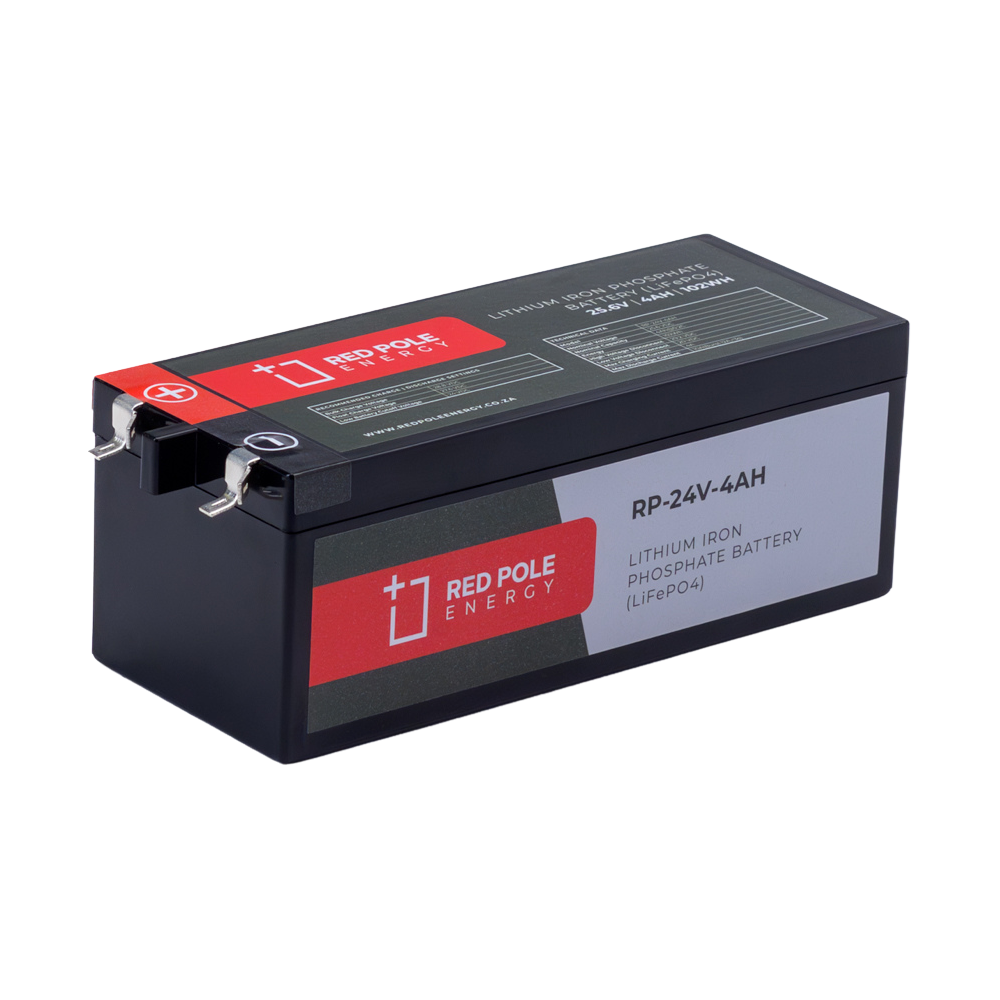

24V 4Ah Garage Door Battery / Lithium Replacement
24V 4Ah Garage Door Battery / Lithium Replacement
Couldn't load pickup availability
Description
- Increased storage capacity.
- Increased life span (10 x longer than lead acid).
- Loadshedding does not destroy these batteries and you can expect a 5+ year life span.
- Compatible with existing chargers and machines.
Ideal for use in:
- Drop in replacement of 24v lead acid battery to a 24v lithium battery
- Upgrade your 24v garage door backup battery to a long lifespan 24v lithium
This long-life lithium upgrade is perfect to upgrade your existing 24v from typically 3.5Ah sealed lead acid battery of your garage door motor to a 4Ah lithium. Made for high cycle rates, load shedding will not destroy the battery.
Features
- Ultra-safe lithium iron phosphate (LifePO4) cells
- Integrated battery management system (BMS)
- Lightweight and compact
- Water and dust resistant (IP55)
- Highly durable sealed plastic enclosure
- Drop-in lead acid replacement
- Sealed and non-liquid (No fumes, no leaking, mount in any position)
Specifications
- Lithium Iron Phosphate (LifePO4) Battery Type
- 102 Wh Usable capacity
- 4Ah Nominal capacity @ 0.2C
- 25.6 VDC Nominal Voltage
- Operating Voltage Range: 24 VDC to 28.8VDC
- Operating Temp Range: Charge: 0 C to 45 C | Discharge: -20 C to 60 C
- Protection: Over-voltage | Under-voltage | Short circuit | Dust and water resistant
- Lifespan: 2000 cycles @ 0.2C charging, or discharging until 70% capacity

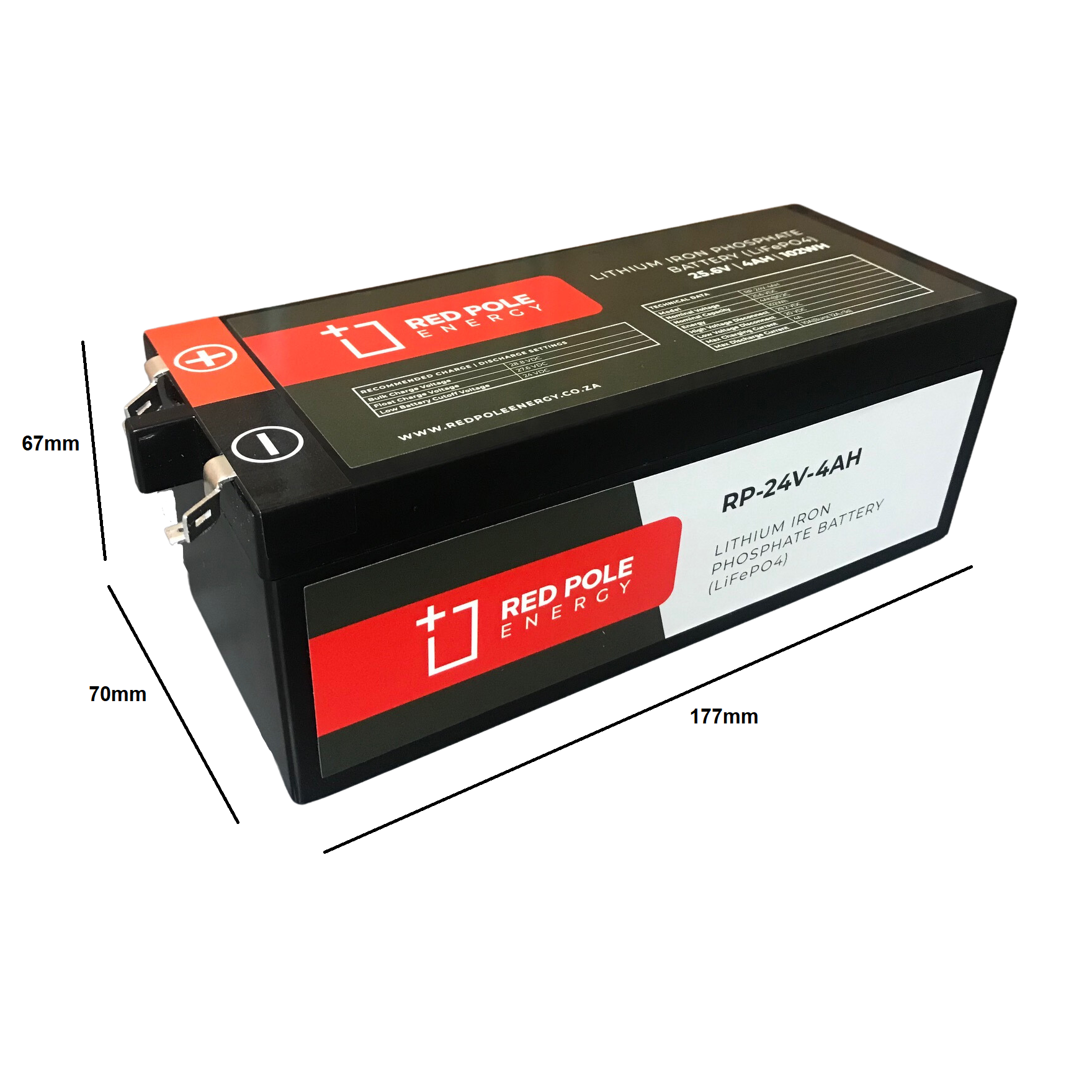

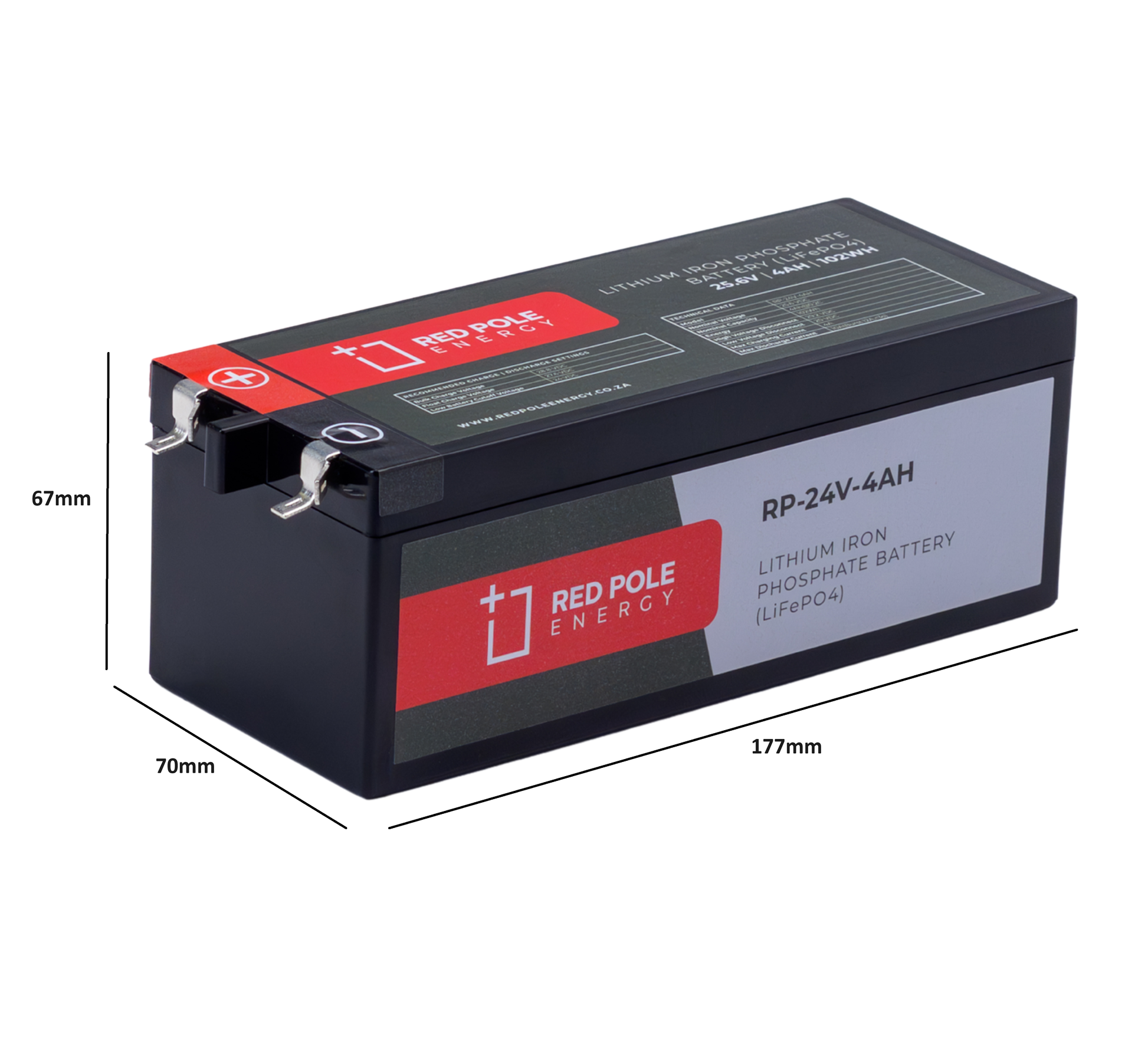

- Dimensions: 177 x 70 x 67mm (W x D x H)(H=185mm including terminals)
- Terminal: F2 male
- Weight: 1200g
Charging / Discharging
- Bulk Charging Voltage: 28.8 VDC
- Float Charging Voltage: 27.6 VDC
- Charge Current: Max 10A
- Discharge Current: Max 10A
- Discharge Voltage Cut-out: 20 VDC
- Over-voltage Cut-out: 29.2 VDC
In the box

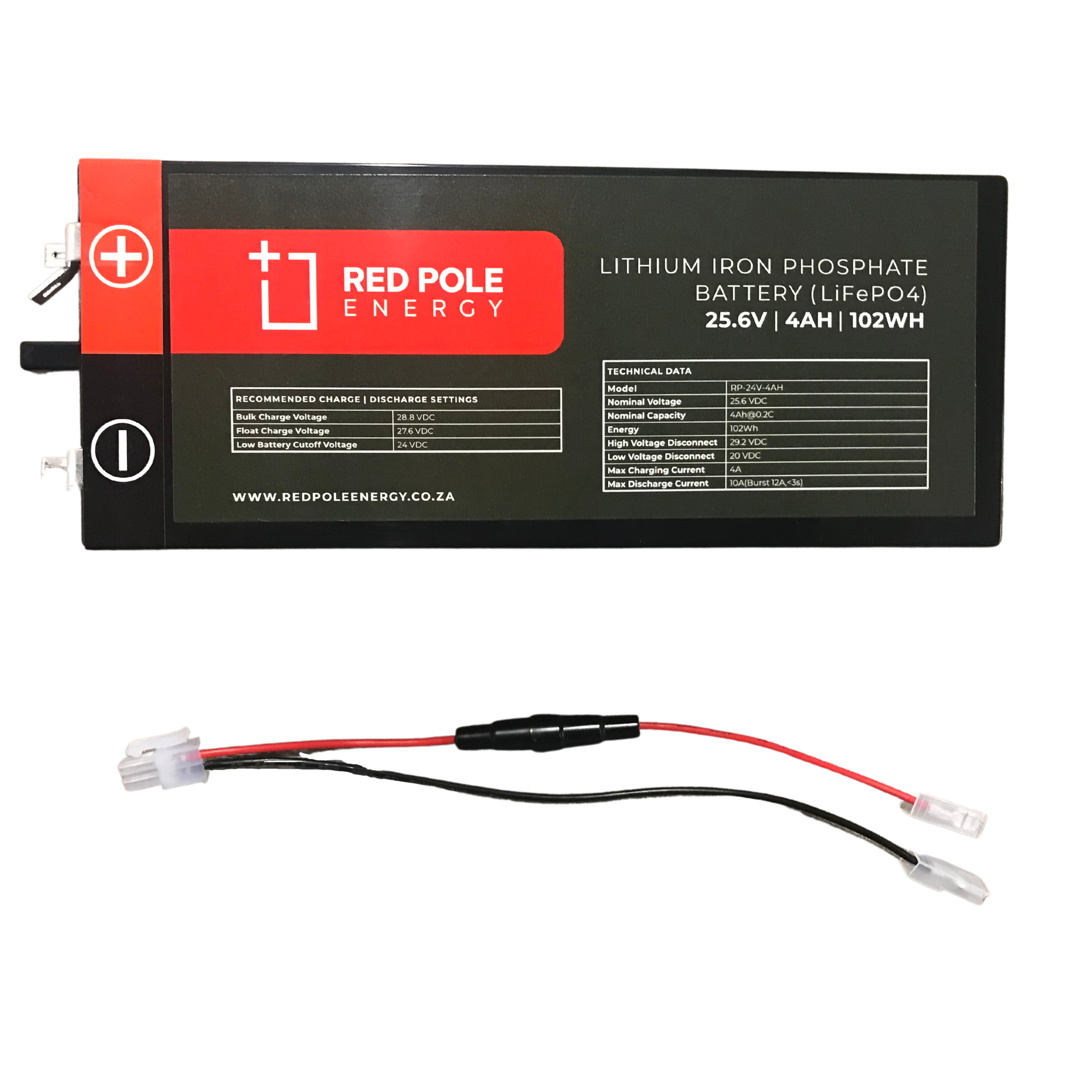

1 x Garage Door Battery - Lithium Replacement - 24V 4Ah
2 x F1 connector to molex 5557 connector and with 10A fuse
