This inverter trolley is ideal for backup applications to keep you and your home office up and running during load-shedding. The Inverter trolley can power a full home office with multiple devices connected. The inverter can power desktops, monitors, routers and even your TV and DSTV Decoder.
The inverter will switch seamlessly between Eskom power and backup power and is a plug and play solution.
To calculate how long a this unit unit can last in your application, lookup or measure the load power of the device(s) it will be powering in Watts, then divide the Effective Wh with that number. Measuring the actual average load in watts is the best and we recommend our easy to use plug and play power meter, see this link here for more information.
Example: WiFi Router (10 - 20W), Laptop (55 - 65W), Screen (11 - 15W), and a LED TV (50 - 80W) would consume 126 - 180W of energy per hour. Let's add a few LED lightbulbs and average it out on 180Watts of energy consumption per hour. Then the runtime of this unit with this connected load, would be 6hrs -8hrs
Modified Sinewave Inverter Wide input voltage range Overload and short circuit protection LCD display for comprehensive information MPPT
Model: IVR-1200MPPT Capacity: 1200VA / 1000W Power Factor: 0.83
Voltage 220-240 VAC Voltage Range 90-280 VAC Nominal Operating Frequency 50/60Hz Maximum Input Current 10A
Nominal Output Voltage 220-240 VAC Voltage Regulation (Batt. Mode) +/-10% Output Frequency Range 50/60Hz Nominal Output Current 5.2A Inrush Current 10A Maximum Output Fault Current 6.9A Transfer Time 20 ms typical Waveform Simulated Sine Wave
- Lithium Iron Phosphate (LifePO4) Battery Type - 1280 Wh Usable capacity - 100 Ah Nominal capacity @ 0.2C - 12.8 VDC Nominal Voltage - Operating Voltage Range : 11.6 VDC to 14.4VDC - Operating Temp Range : Charge: 0°C to 45°C | Discharge: -20°C to 60°C - Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant - Lifespan : 2000 cycles @ 0.2C charging, or discharging until 70% capacity

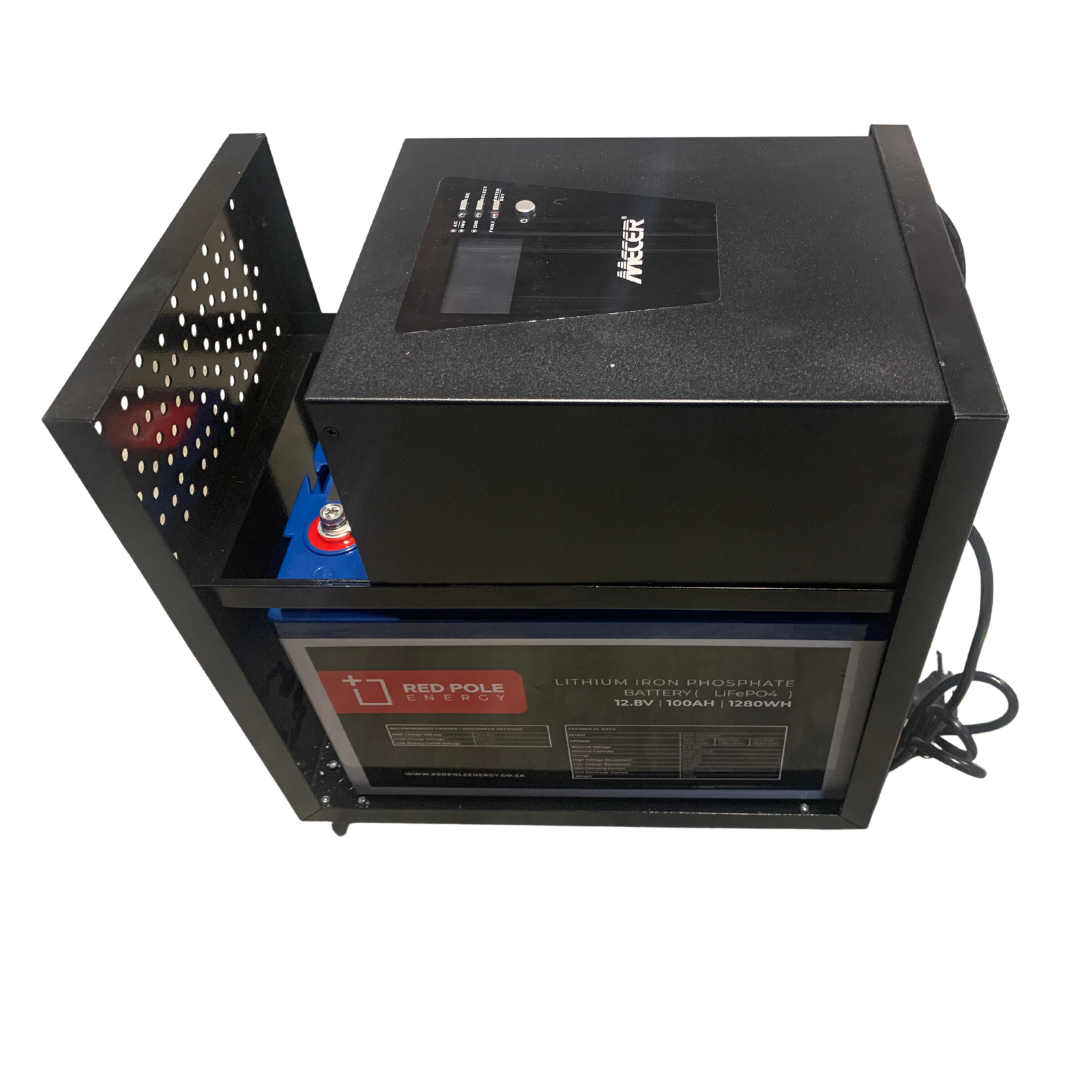

1 x 12v 100Ah (1.28kWh) Lithium Battery 2 x 8mm Battery Lugs 1 x Mecer 1200VA / 1000W 12V Inverter 1 x Steel movable trolley
