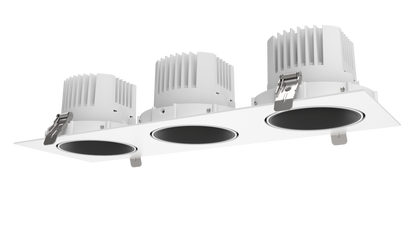

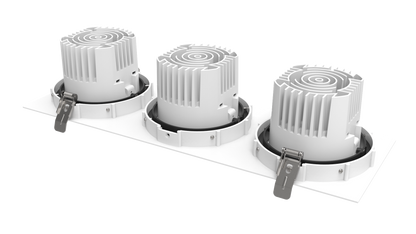

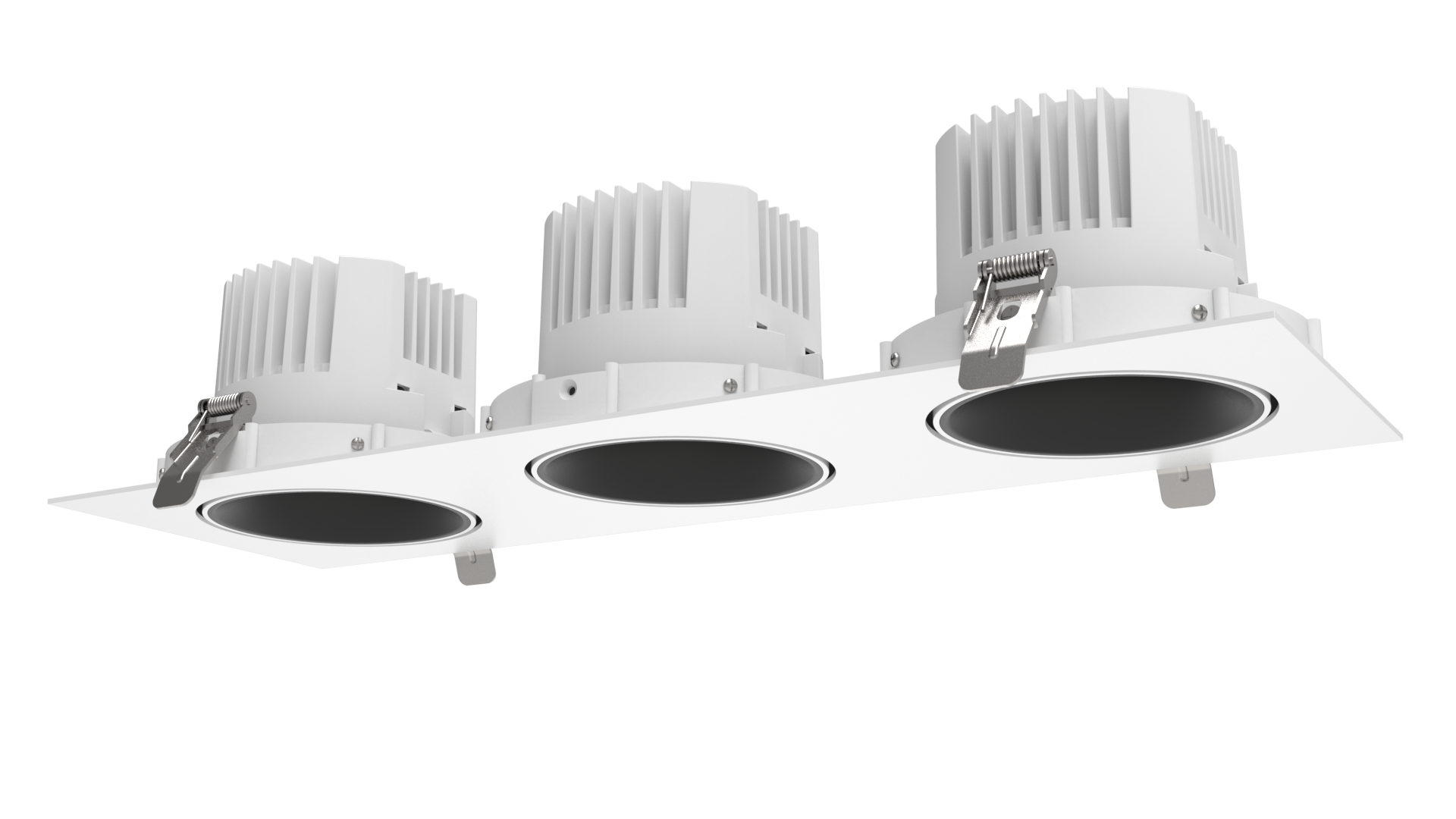

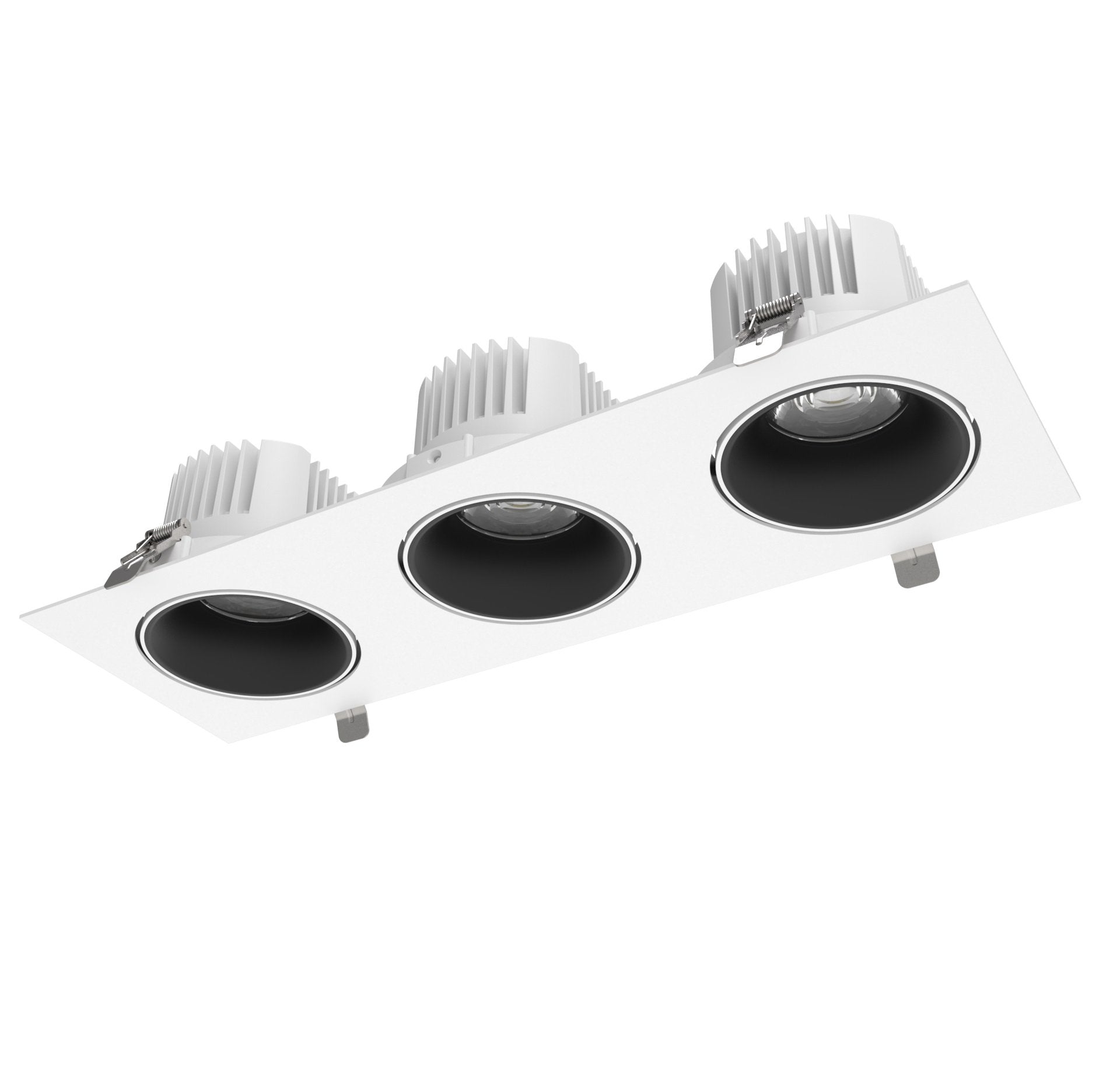

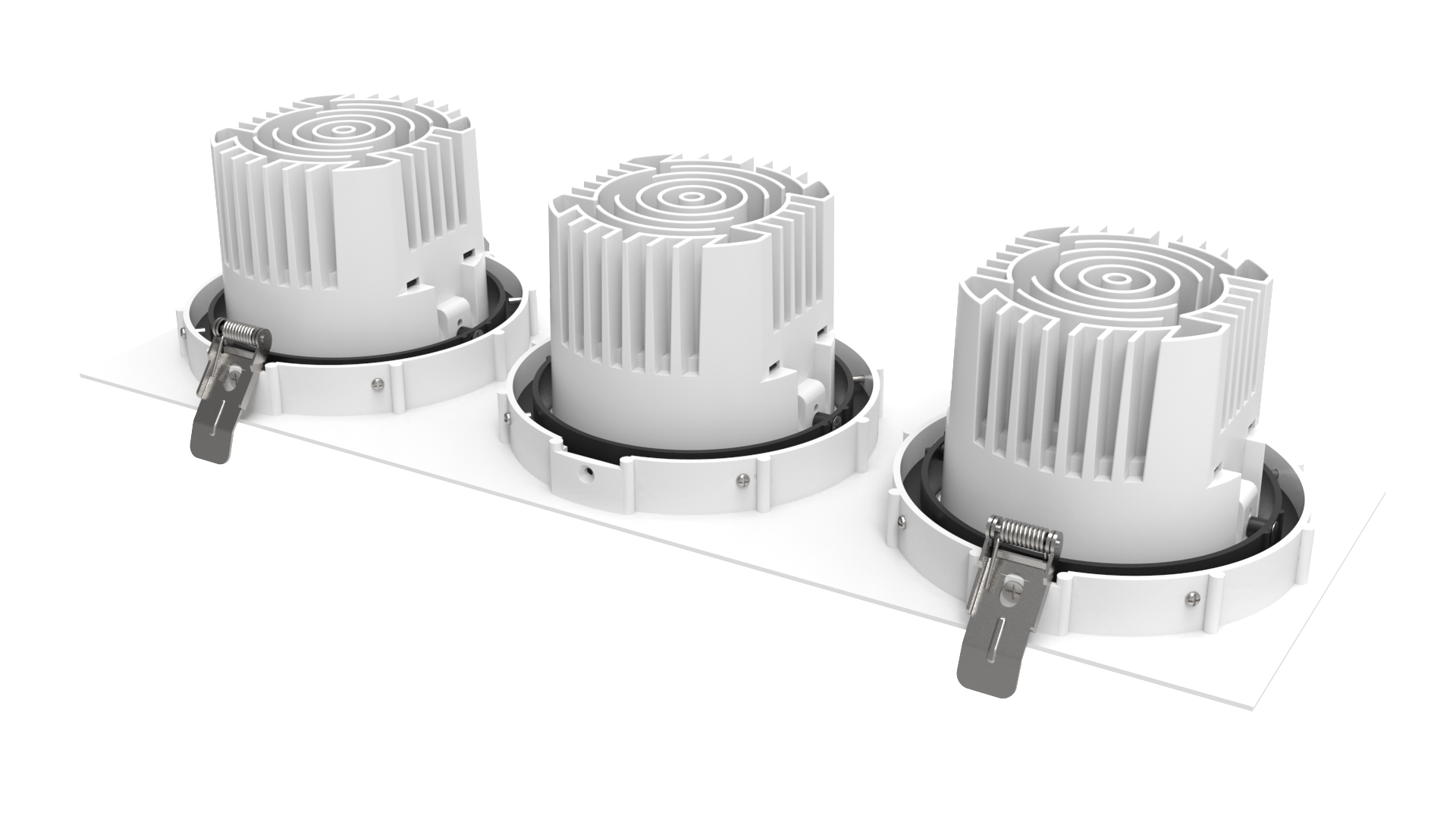

The ST Tilt Grill Light - 3 x 30W - 4000K - 3YR comes with a COB LED module and improved colour reproduction. Cooling system: passive cooling(perfect design of air convection) heat sink made from high quality die-cast aluminium. With unique optical design, highly efficient with uniformed distribution, precise light distribution and anti-glare.
Ideal for Spot lighting in retail environment
Single, Double and Triple Head options
Low operational cost and energy saving compared to compact fluorescent
Recessed mounting
30 degrees tiltable, 360 degrees rotatable
Various Beam Angles, CCT and Power options available on order
Three Head Grill Light
|
Wattage:
|
3 x 30W
|
|
CCT
|
4000K
|
| Efficiency |
90 Lumen / Watt |
|
CRI:
|
>80
|
|
Beam Angle:
|
60°
|
|
Power Factor:
|
PF>0.9
|
|
IP Rating:
|
IP20
|
|
Lumen:
|
8100lm
|
|
LED Chip:
|
Bridgelux COB-1pc
|
|
Driver Type:
|
Lifud Non-Flicker
|
|
Input Voltage:
|
AC220-240V 50/60HZ
|
|
Protection:
|
Class II, Does not require earth connection
|
|
Housing Material:
|
Die-cast aluminium housing, heavy duty cover
|
|
Dimensions:
|
163mm x 163mm x 97mm
|
|
Cut Out Dimensions:
|
150mm x 150mm
|
|
Operating Temp Range:
|
-200C - +400C
|
|
Colour:
|
White
|
|
Warranty:
|
3 year
|
Three Head Grill Light
LED Chip: Bridgelux COB-1pc CRI>80
Input Voltage: AC220-240V 50/60HZ
Beam Angle: 60°
Lumen: 8100lm
Dimensions: 495x163x97mm
Cut Out: 480x150mm
CCT: 4000K
Led Driver: Lifud Non-Flicker
Colour: Black
IP20 ta: -20°C~+40°C tc: 70°C
Download Specification Sheet HERE
1 x ST Tilt Grill Light - 3 x 30W - 4000K - 3YR
1 x Lifud Non Flicker Driver
1 x Installation Guide
