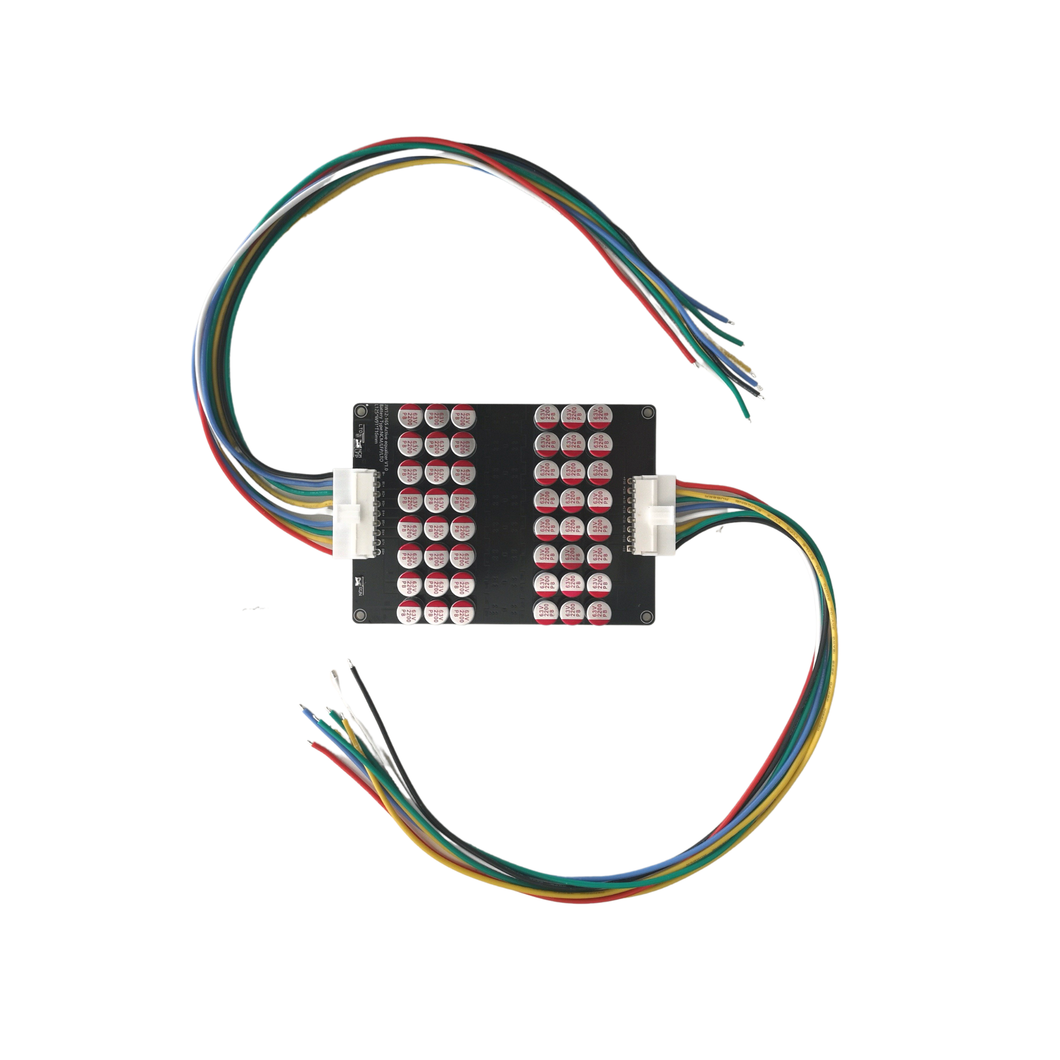

16s 5A Active Equalizer Balancer LiFePO4 Lithium Battery
This active balancer for Lithium Iron Phosphate batteries has an equilibrium current of up to 5.5A, and a balance voltage accuracy of 5mv. The balancing current increases or decreases depending on how balanced the cells in the battery are. If the battery voltage drops below 3v per cell, then the balancer enters sleep mode, drawing a current of less than 0.1mA. The active balancer has a quiescent current of maximum 10mA, so it is recommended that the battery capacity is 60-300Ah. Technical Specification: Balance Start Voltage : 3.0-4.2 VDC Balance Stop Voltage : 2.9 VDC (Sleep mode) Balance Accuracy : ≤5mv Sleeping Current : ≤1mA Quiescent Current : Max 10mA Working Temperature : 0°C to 60°C Dimension : 125mm x 91mm x 16mm (L x W x H)
