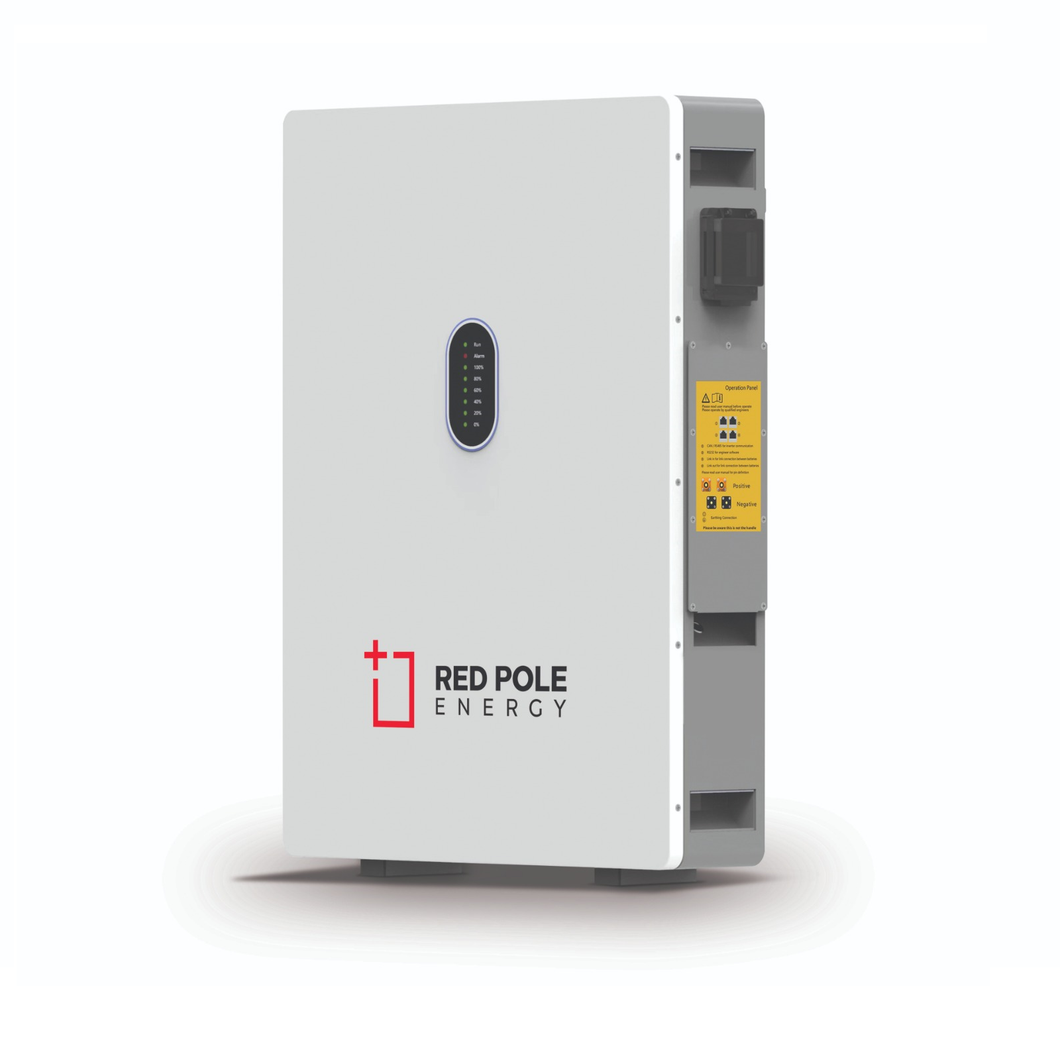

51.2V 200Ah 10.24kWh Vital-10 Lithium Battery - Wall Mounted
Regular price
R 59,999
R 49,999
Sale
Technical Specifications:
Usable Capacity : 10.24kWh Nominal Voltage : 51.2 VDC Nominal Capacity : 200Ah @ 0.2C Operating Voltage Range: 44.8v- 58.4 VDC Weight : 132kg Warranty : 5 Years Charge Voltage : 55.2 VDC Discharge Voltage Minimum : 39 VDC Continuous Charging Current : Max 100A Continuous Discharging Current : Max 150A Display : None Cycle Life @ 0.2C : >= 5000 cycles @ 100% DOD Over Voltage Cutout : 58.4 VDC Under Voltage Cutout : 44.8 VDC Dimensions : 986mm x 715 mm x 188mmOperating Temp Range : Charge: 0°C to 45°C | Discharge: -20°C to 60°C
Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant IP Class : IP20 Ports : 1x CAN-bus, 2x RS-485, 1x RS232 Parallel : Parallel connection up to 15 packs with full communications Battery Case : Floor Standing Metal Chassis
