Key Benefits: - Increased storage capacity. - Increased life span (10 x longer than lead acid). Loadshedding does not destroy these batteries and you can expect a 5+ year life span from them. - Capacity upgrade of garage door backup battery from typically 3.5Ah to 6Ah Compatible with existing chargers and machines.
Ideal for use in: - Drop in replacement of 24v lead acid battery to a 24v lithium battery - Upgrade your 24v garage door backup battery to a long lifespan 24v lithium - Capacity upgrade of garage door backup battery from typically 3.5Ah to 6Ah.
This long-life lithium upgrade is perfect to replace your existing 24v (typically 3.5Ah) sealed lead acid battery of your garage door motor. Made for high cycle rates, load shedding will not destroy the battery AND it will last longer since it has an increased capacity (6Ah vs 3.5Ah) so your battery can power equipment longer on a single charge.
- Ultra safe lithium iron phosphate (LifePO4) cells - Integrated battery management system (BMS) - Light weight and compact - Water and dust resistant (IP55) - Highly durable sealed plastic enclosure - Drop-in lead acid replacement (gate motors, alarm systems, small electronics) - Sealed and non-liquid (No fumes, no leaking, mount in any position)

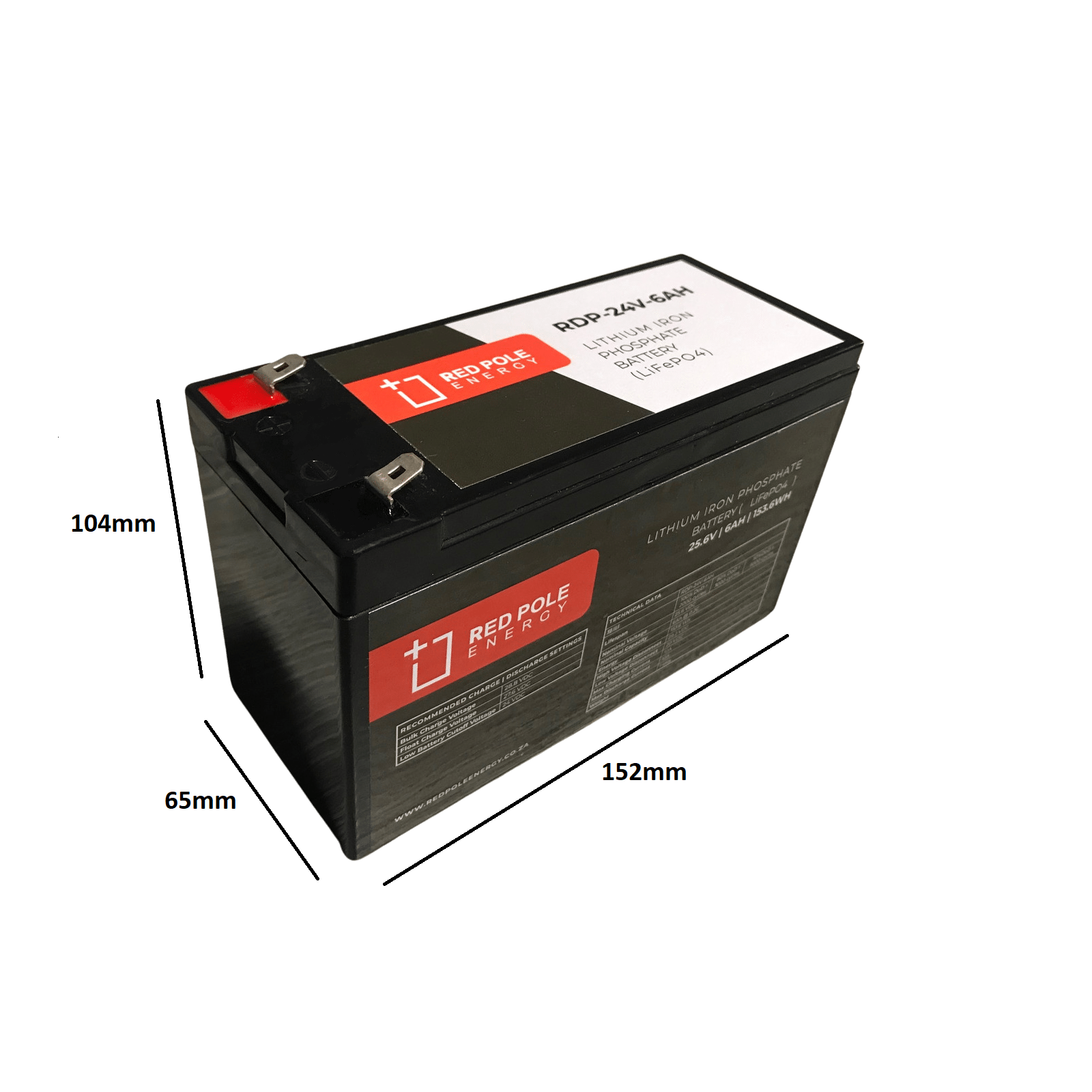

- Lithium Iron Phosphate (LifePO4) Battery Type - 153.6 Wh Usable capacity - 6Ah Nominal capacity @ 0.2C - 25.6 VDC Nominal Voltage - Operating Voltage Range: 24 VDC to 28.8VDC - Operating Temp Range: Charge: 0°C to 45°C | Discharge: -20°C to 60°C - Protection: Over-voltage | Under-voltage | Short circuit | Dust and water resistant - Lifespan: 2000 cycles @ 0.2C charging, or discharging until 70% capacity - Dimensions: 152 x 65 x 97 mm (W x D x H)(H=104mm including terminals) - Terminal: F2 - Weight: 1352g
Charging / Discharging: - Bulk Charging Voltage: 28.8 VDC - Float Charging Voltage: 27.6 VDC - Charge Current: Max 10A - Discharge Current: Max 10A - Discharge Voltage Cut-out: 20 VDC - Over-voltage Cut-out: 29.2 VDC - Discharge Current: 1A for 6hrs | 2A for 3hrs | 6A for 1hr
